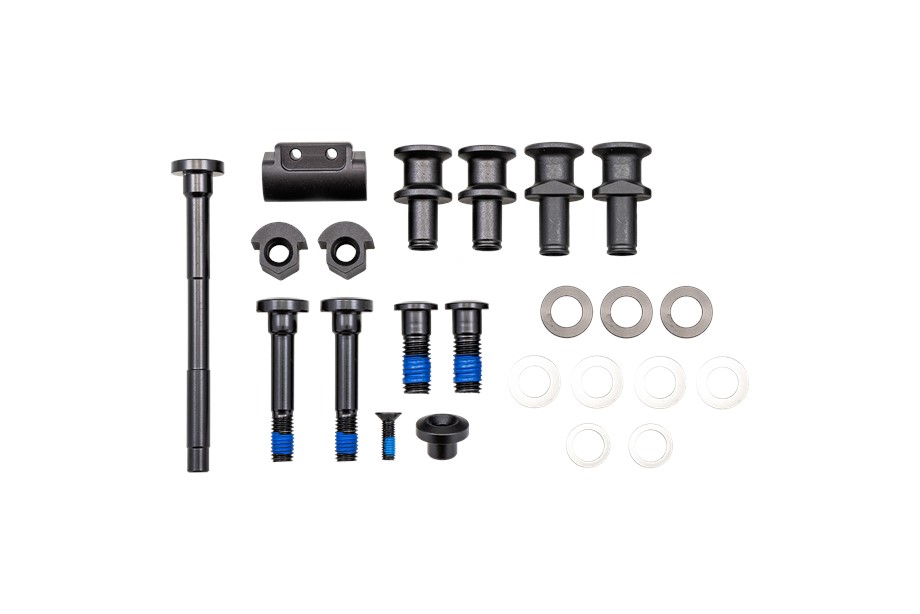

Motor mounting hardware kit with all bolts, washers, and spacers required for both Alloy and Carbon frame Gen.3 Levo bikes. This newer kit includes three 1.5mm thick alloy washers required for Alloy frame bikes that were not included in the original hardware kit S210500010. It will be normal to have three left over washers after using this kit: Alloy frames - you will have Qty 3 of the 18mm OD x 10.5mm OD x 0.2mm Thick washers left over. Carbon frames - you will have Qty 3 of the 18mm OD x 10.5mm OD x 1.5mm Thick washers left over.

• Rear Mounting Bolts (Qty 2): M10x1.5Px28mm Length
• Rear Mounting Bolt Washers (Qty 2): 15mm OD x 10.6mm ID x 0.2mm Thick
• Center Mounting Bolts (Qty 2): M8x1.25Px50mm Length
• Center Mounting Wedge Nuts (Qty 2): M8x1.25P
• Center Mounting Frame Spacers: 20mm OD x 8.2mm ID x 17.6mm Length
• Driveside Forward Axle Bolt (Qty 1): M5x0.8Px16mm Length
• Driveside Forward Axle Spacer (Qty 1): 10.2mm OD x 7.4mm ID x 12.5mm Thick
• Non-Driveside Forward Mounting Axle (Qty 1): M8x100mm Length
• Forward Mounting Frame Spacers (Qty 2): 20mm OD x 8.2mm ID x 17.6mm Length
• Forward Mounting Wedge (Qty 1): 35mm Width with M4x0.7P Threads
• Mounting Bolt Washers (Qty 4): 18mm OD x 10.5mm OD x 0.2mm Thick. Used for the DS Center Bolt on all frames. On Carbon frames also used for the Forward Axle, Forward Axle Spacer, and NDS Center Bolt.
• Alloy Frame Bolt Washers (Qty 3): 18mm OD x 10.6mm ID x 1.5mm Thick. Used for the Forward Axle, Forward Axle Spacer, and NDS Center Bolt.

Where Used

2025 Turbo Levo Expert G3 - Warranty Frame
2025 Turbo Levo 3 Expert T-Type
2025 Turbo Levo 3 Expert T-Type
2025 Turbo Levo 3 Comp Carbon
2025 Turbo Levo 3 Comp Carbon
2025 Turbo Levo 3 Comp Carbon
2025 Turbo Levo 3 Comp Carbon
2025 Turbo Levo 3 Comp Alloy
2025 Turbo Levo 3 Comp Alloy
2025 Turbo Levo 3 Comp Alloy
2025 Turbo Levo 3 Comp Alloy
2025 Turbo Levo 3
2025 Turbo Levo 3
2025 Turbo Levo 3
2025 Turbo Levo 3
2024 Turbo Levo Pro - Warranty Frame
2024 Turbo Levo Comp Alloy
2024 Turbo Levo Comp Alloy
2024 Turbo Levo Alloy Öhlins Coil LTD
2024 Turbo Levo Alloy Öhlins Coil LTD
2024 Turbo Levo Alloy
2024 Turbo Levo Alloy
2024 Turbo Levo 3 Comp Alloy
2024 Turbo Levo 3 Comp Alloy
2024 Turbo Levo 3 Alloy Öhlins Coil LTD
2024 Turbo Levo 3 Alloy
2024 Turbo Levo 3 Alloy
2024 S-Works Turbo Levo Frameset
2024 S-Works Turbo Levo Frameset
2024 S-Works Turbo Levo - Warranty Frame
2024 Levo LTD II
2024 Levo LTD I
2024 Levo II
2024 Levo I
2024 Levo 3 III
2024 LEVO LTD III NB
2023 Turbo Levo Pro Carbon
2023 Turbo Levo Pro Carbon
2023 Turbo Levo Pro - Warranty Frame
2023 Turbo Levo Expert T-Type
2023 Turbo Levo Expert
2023 Turbo Levo Comp Alloy
2023 Turbo Levo Carbon
2023 Turbo Levo Alloy
2023 Turbo Levo 3 Pro Carbon
2023 Turbo Levo 3 Expert T-Type
2023 Turbo Levo 3 Expert T-Type
2023 Turbo Levo 3 Expert
2023 Turbo Levo 3 Expert
2023 Turbo Levo 3 Comp Carbon
2023 Turbo Levo 3 Comp Carbon
2023 Turbo Levo 3 Comp Alloy
2023 Turbo Levo 3 Comp Alloy
2023 Turbo Levo 3 Comp
2023 Turbo Levo 3 Carbon
2023 Turbo Levo 3 Alloy
2023 Turbo Levo 3 Alloy
2023 Turbo Levo 3 Alloy
2023 S-Works Turbo Levo T-Type
2023 S-Works Turbo Levo Frameset
2023 S-Works Turbo Levo 3 T-Type
2023 S-Works Turbo Levo 3 Frameset
2023 S-Works Turbo Levo 3
2023 S-Works Turbo Levo 3
2023 S-Works Turbo Levo 3
2023 S-Works Turbo Levo 3
2023 S-Works Turbo Levo - Warranty Frame
