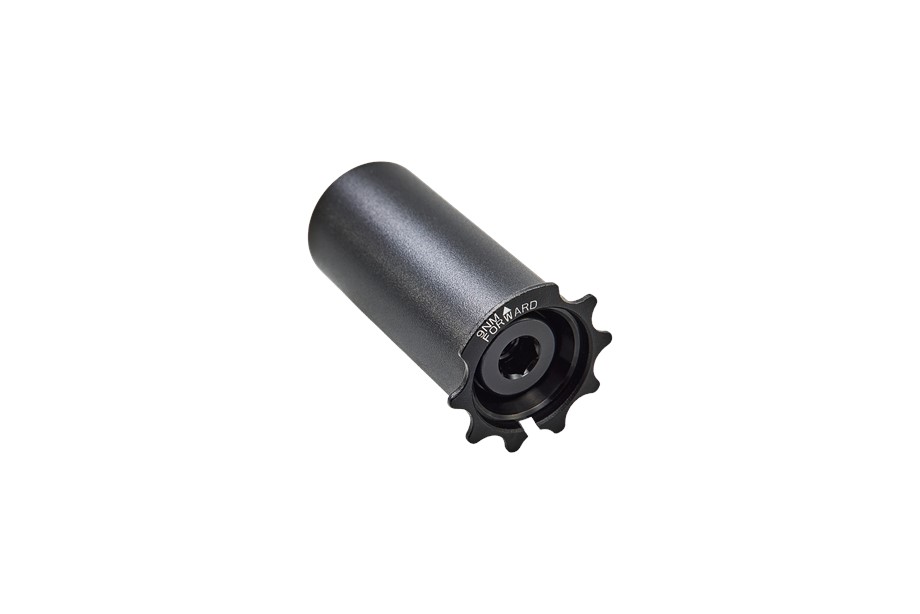

Lightweight headset compression plug for forks with a carbon steerer tube that has a narrow inner diameter (ID). Not cross compatible with after-market compression plugs.

• Approved for use only on bikes where this carbon steerer tube plug was installed from the factory.
• Note this plug should be oriented with the arrow pointing to the front of the bike when being installed into a fork.
• Compatible with top-cap bolts that are M6x1.0P.
• Torque Spec: 9Nm (79.6-in-lbf)
• Dimensions: 50mm Length x 22.4mm OD

Where Used

2027 Tarmac SL9 S-Level - Shimano Dura-Ace Di2
2027 Tarmac SL9 S-Level - SRAM RED AXS
2027 Tarmac SL9 Frameset - FACT 10r Carbon
2027 Tarmac SL9 Expert - Shimano Ultegra Di2
2027 Tarmac SL9 Expert - SRAM Force AXS
2027 Tarmac SL9 Comp - Shimano 105 Di2
2027 Tarmac SL9 Comp - SRAM Rival AXS
2027 Tarmac SL9 - Warranty Frame
2027 S-Works Tarmac SL9 Team Replica Frameset - Soudal Quick-Step
2027 S-Works Tarmac SL9 Team Replica Frameset - SD Worx - Protime
2027 S-Works Tarmac SL9 Team Replica Frameset - Red Bull - BORA - hansgrohe
2027 S-Works Tarmac SL9 Team Replica Frameset - FDJ United - SUEZ
2027 S-Works Tarmac SL9 LTD - Built for Legends
2027 S-Works Tarmac SL9 Frameset - FACT 12r Carbon
2027 S-Works Tarmac SL9 Frameset - FACT 12r Carbon
2027 S-Works Tarmac SL9 - Warranty Frame
2027 S-Works Tarmac SL9 - Shimano Dura-Ace Di2
2027 S-Works Tarmac SL9 - SRAM RED AXS
2027 S-Works Crux 5 Frameset - FACT 12r Carbon
2027 S-Works Crux 5 - Warranty Frame
2027 S-Works Crux 5 - SRAM RED XPLR
2027 S-Works Aethos 2 - SRAM RED AXS
2027 S-Works Aethos 2 - Warranty Frame
2027 Crux 5 Sport - Shimano GRX 800
2027 Crux 5 S-Level - SRAM RED XPLR
2027 Crux 5 Frameset - FACT 10r Carbon
2027 Crux 5 Expert - SRAM Force XPLR
2027 Crux 5 Comp - SRAM Rival XPLR
2027 Aethos 2 Pro - Warranty Frame
2027 Aethos 2 Pro - SRAM Force AXS
2027 Aethos 2 Pro - SRAM Force AXS
2027 Aethos 2 Expert - Shimano Ultegra Di2
2027 Aethos 2 Expert - SRAM Force AXS
2026 S-Works Aethos 2 LTD - Year of the Horse
2026 S-Works Aethos 2 Frameset - FACT 12r Carbon
2026 S-Works Aethos 2 - Shimano Dura-Ace Di2
2026 S-Works Aethos 2 - SRAM RED AXS
2026 S-Works Aethos 2 - Warranty Frame
2026 Aethos 2 Pro - Warranty Frame
2026 Aethos 2 Pro - Shimano Ultegra Di2
2026 Aethos 2 Pro - SRAM Force AXS
2026 Aethos 2 Frameset - FACT 10r Carbon
2026 Aethos 2 Expert - Shimano Ultegra Di2
2026 Aethos 2 Expert - SRAM Force AXS
