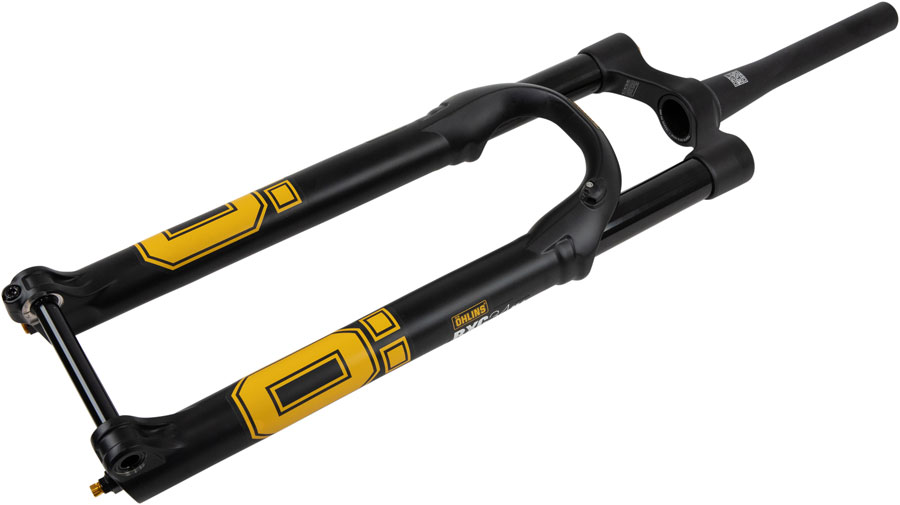

Ohlins RXC34 m.1 Suspension Fork - 29", 120mm, 15mm x 110mm, 44mm Offset, OTX14 Damper, Air Spring, Black

  • BPC Product ID: BPC527475
  • UPC ID: 840153633591
  • Manufacturer ID: FGMTB 3412 2351


Price: $1,350.00


Description

Unleash the next level of racing performance with the latest innovation in Ohlins front suspension – the RXC34 m.1 XC fork. Equipped with their race-proven floating axle design, the RXC34 m.1 features a chassis with a stiff yet lightweight aluminum crown construction, providing precise steering and predictable performance. The RXC34 m.1 incorporates an all-new damper and updated air spring to further enhance speed and control on technical cross-country tracks. As part of the Öhlins XC suspension system, the RXC34 m.1 boasts a rider-friendly system to adjust air spring progressiveness and stroke. And with their race proven setting bank, you’ll be able to fine-tune the fork to your unique riding style and bike linkage.
  • Uses the new XC-optimized OTX14 damper that's been extensively designed to provide a slim, lightweight damper packed with technology
  • Highly adjustable with race-proven setting bank to match riding style and bike
  • Two-chamber air spring feature a large negative air chamber balanced with the damper’s characteristics in the three different ride modes – open, pedal, and lockout
  • Creates the initial movement required for superior traction while retaining best-in-class, predictable support when pushing hard
  • 12 clicks of LSC and 12 Clicks of rebound
  • Up to 5 positive volume spacers to adjust progressiveness (depending on travel)
  • Up to 7 negative spacers to adjust initial sensitivity
  • 15mm x 110mm boost floating thru-axle axle design

Additional Information

Positive Spring Air
Wheel Size 29"
Brake Type Post Mount 180
External Adjustments High Speed Compression Damping , Low Speed Compression Damping , Rebound Damping
Crown Race 40
Negative Spring Air
Stanchion Diameter 34
Front Axle 15mm Thru x 110mm
Steerer Type Tapered
Offset 44
Maximum Tire Width 66
Color Black
S.H.I.S. Stem Clamp Diameter 28.6
Travel (mm) 120
Axle to Crown Length 531
Lockout Switch Crown
Defined Color Black
Weight 1598
